NOAA Active Region 1520 certainly was a very active sunspot group. During its transit across the solar disk, it produced 5 M-class solar flares and even one X-flare (the strongest class). When it crossed the solar limb on 18 July, it certainly didn't diminish in activity. Indeed, over the next few days, several coronal mass ejections could be seen billowing away from behind the solar limb.
A particular interesting event occurred in the early morning hours of 23 July, when this active region produced another eruption. At that time, NOAA 1520 was already several days on the backside of the Sun, and no instruments from Earth could monitor the blast in x-ray or radio-wavelengths.
However, the STEREO-A satellite was well positioned to observe this event. Together with its twin brother STEREO-B, these spacecraft are orbiting the Sun in such a way that they gradually get a better view of the Sun’s backside (http://stereo.gsfc.nasa.gov/beacon/ ) . The schematic underneath shows which part of the solar surface was visible from Earth (green), from STEREO-A (red), and from STEREO-B (blue). As can be seen, the flare was directed almost straight towards STEREO-A, and occurred very close to the “east” limb for STEREO-B.
The flare itself occurred around 02:30UT in the morning, following some magnetic activity that had already been going on for an hour. From the brightness and the extent of the eruption, one can safely conclude that this was a high energetic event, probably belonging to the strongest X-class of solar flares.
The ejection of material left its mark in the Sun's corona, being visible as an irregular dark hole to the bottom left of the flare. The ejected cloud was visible in images from SDO (http://sdo.gsfc.nasa.gov/ ), PROBA2 (movie at http://proba2.sidc.be/swap/data/mpg/movies/20120723_swap_movie.mp4 ), SOHO http://sohowww.nascom.nasa.gov/ , and both STEREO-satellites. STEREO-A saw this ejected material as a full halo emanating from the Sun, indicating that this particle cloud was on a collision course with the tiny spacecraft.
Even though the source of the eruption was behind the limb as seen from Earth, bright, hot post-flare loops of magnetic field, tell-tale markers of the magnetic activity that drives coronal eruptions, were soon visible rising high above the solar surface.

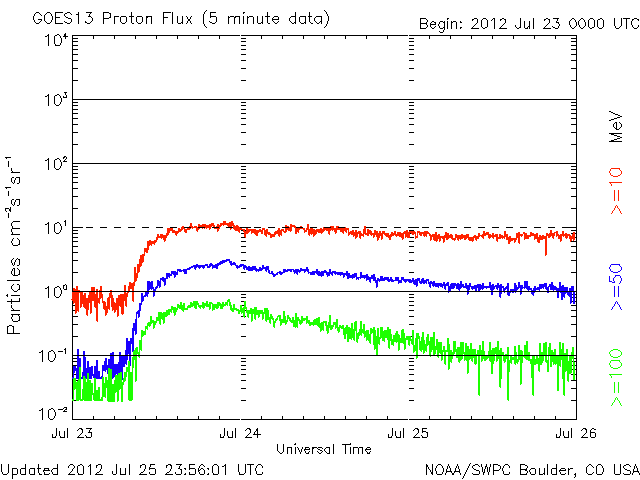

The powerful flare also produced what space weather experts call a proton event, generating a stream of high energy protons reaching STEREO-A in just a few hours. Starting at about 10:30UT, these high energy particles interfered with the spacecraft’s onboard electronics, significantly degrading the quality of images from STEREO-A. Some of these protons managed to make it all the way to the Earth, causing a very weak proton event. This is not an uncommon occurrence, as –in the past- there have been other events so far on the Sun’s backside to produce proton effects here on Earth.
The most interesting part of this eruption, again testifying of its rare strength, occurred during the evening hours of the very same day. Indeed, the coronal mass ejection (CME) arrived at STEREO-A already around 20:00UT, with solar wind speed jumping from about 550 km/s to at least 1400 km/s. When a CME travels the Sun-Earth distance (in this case Sun - STEREO-A) in less than 22 hours, it gets a special name: Fast Transit Event. Only a handful of such events are known, and they are associated with severe geomagnetic storming. One of the last such events were the CME's from the Halloween events (29-30 October 2003), when speeds (near Earth) were recorded in excess of at least 1850 km/s, having travel times of about 19 hours.
Of course, one could ask with which speed the CME took off at the Sun. As a CME is usually decelerated by the much slower solar wind around it, this CME must have had a much higher speed than the 1400 km/s it had at STEREO-A. Usually, scientists take some key-points along the CME's outskirts to determine its speed. This is always a tricky case, because when the CME is traveling along the line-of-sight, the eruption's apparent speed might be significantly less than the true speed (see schematic underneath). With NOAA 1520 already well beyond the solar limb, this line-of-sight effect had a significant influence on the measurements by SOHO. STEREO-B on the other hand was best placed for this kind of calculations.
Combining images from the spacecraft (SOHO, STEREO-A and -B) in an advanced triangulation matrix, scientists from NASA’s Space Weather Research Center (SWRC - http://swc.gsfc.nasa.gov/main/20120723-AL-005 ) were able to calculate the initial speed of the CME to be about 3400 km/s. Such a speed places it in the hall of CME's with the highest initial CME speed ever, comparable e.g. to the 20 January 2005 event. A performance worthy of a true Olympian!
The week started with an event with a potential impact: active region 1520 was the source of a CME which caused CACTus (software for automated CME detection in LASCO coronograph images) to send a halo CME-alert. The picture below is a difference image: two pictures are subtracted from each other such that the differences between them become clear and the similarities are not shown. Moving structures pop up in a clear way in difference images. These images are made by LASCO, a coronograph onboard the spacecraft SOHO.
A sector boundary crossing caused unsettled conditions on July 23-24: the interplanetary magnetic field (IMF) oscillated such that the Earth passed from a region to another with a magnetic field pointing in the opposite direction.
A magnetic structure was visible in the solar wind on July 28 - see the top panel of the picture below. The structure had a speed of 350 km/s - see the fourth panel of the picture.
Solar Activity
Early this week, the Sun's activity level was generally *low* until AR 11532 crossed the East limb Thursday.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa.
This page also lists the recorded flaring events.
On Monday 23rd, AR11520, from behind the West limb, expelled a very rapid CME. According to some reports this could be the fastest CME ever recorded, with an ejection speed of around 3400 km/s.
A movie, showing the phenomenon can be found here:
http://proba2.oma.be/swap/data/mpg/movies/campaign_movies/2012_07_23_01_50_08_2012_07_23_02_49_44_SWAP_174__AIA_304.mp4
The movie was generated with HelioViewer, using (colored) SWAP (174, yellow) and SDO AIA (304, orange) images.
One image of the movie is shown below:
SWAP/SDO Image: CME on Monday 23/07; at 16:37
On Thursday 26th, an extended filament eruption occurred on the north east limb.
A movie, showing the phenomenon can be found here:
http://helioviewer.org/?movieId=mFp55
This movie was generated with HelioViewer, using (colored) SWAP (174, yellow) images. Right after the end of this eruption, another filament eruption occurred on the opposite side, i.e. on the north west limb, starting after midnight on July 27th.
Some (original, uncolored) SWAP pictures of this eruption are shown below:
1. Eruption in progress
2. Eruption at maximum extension
SWAP Image: Filament eruption on Thursday 26/07; at 22:24
SWAP Image: Filament eruption in maximum extension on Thursday 26/07; at 23:37
On Saturday 28th, several spectacular phenomena occurred.
Filamenent/prominence activity could be followed from Saturday 28th around 15:00 until Sunday 29th 03:00, starting near the south east limb and evolving into on disk filament activation between AR 11530 (southern) and AR 11528 (northern). Also on July 27th such a (more reduced) filament brightening occurred.
Several SWAP (and SDO) movies about these phenomena can be found in the following directory: http://proba2.oma.be/swap/data/mpg/movies/campaign_movies/2012_07_272829/
The following pictures (combined SWAP 174 in yellow and SDO 304 in orange) show the evolution of:
1. the swirling filament eruption having started near (or possibly behind?) the south east limb
2. the end of the eruption and the start of the filament brightening between ARs 11530 and 11528.
3. the filament brightening at its brightest
Below, a SWAP (normal and difference) image of the filament brightening:
From Friday to Sunday, AR 11532 generated 1 M flare per day

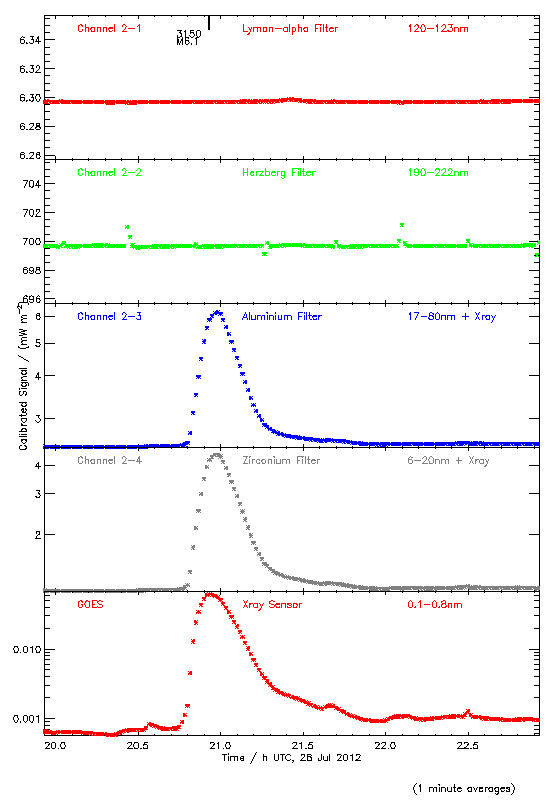

An M6.1 flare occurred on Saturday. A SWAP picture around 21:00 and the associated LYRA/GOES curves are shown below:
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA | NOTE |
| 27 | 1717 | 1726 | 1732 | S18E62 | M2.7 | SF | 340 | III/3 II/1 | 27 | 1532 | CME |
| 28 | 2044 | 2056 | 2104 | S25E54 | M6.1 | 2N | 370 | II/2 III/1 IV/2 | 27 | 1532 | CME |
| 29 | 0615 | 0622 | 0629 | S22E49 | M2.3 | 1N | 110 | IV/2 | 27 | 1532 |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |
