The Sun took a good aim at Earth this week.
Indeed, on two occasions, an eruption took place very near the central meridian of the Sun. The central meridian is a fixed, imaginary line on the Sun running from the north to the south solar pole. Scientists use this line all the time to unambiguously determine positions of sunspot groups and other solar features on the Sun. The distance to this central meridian is called the "Central Meridian Distance" (CMD). The CMD is negative to the east of the Sun, and positive to the west, and varies between -90° and +90°. If an eruption occurs with a CMD of about 0°, it means the eruption took place very near the central meridian and usually also that it is directed straight towards Earth. Solar orientation grids can be found at various websites, e.g. at SIDC/Soteria (http://www.sidc.oma.be/ ), Solar Monitor (http://www.solarmonitor.org/ ) and at MEES Solar Observatory (http://www.solar.ifa.hawaii.edu/ ). Underneath an example from the SIDC/Soteria page, with the central meridian added as a green dashed line.
The 12 March eruption was associated with a C2-flare that started at 10:17UT and ended only at 12:27UT, making this a long duration event (LDE). The filament belonged to a small sunspot region NOAA 1690. The eruption was at relatively northern latitudes (+/-25°), but part of the ejected material was still directed towards the Earth. From STEREO-B data, it was determined that a coronal mass ejection (CME) had left the Sun with a speed of at least 530 km/s. As predicted, Earth received a glancing blow from this CME resulting in unsettled geomagnetic conditions during the early morning hours of 15 March.
The second eruption occurred on 15 March and started at 05:46UT. It ended at 08:35UT, making it again an LDE. The flare was associated with a filament eruption located very close to sunspot region NOAA 1692, which had already erupted previously during the night of 12-13 March (impulsive C3-flare located about -40° CMD) However, the 15 March flare concerned a M1-flare (weak proton event) located only 10° east of the central meridian, and also a lot closer to the solar equator.
A movie of both eruptions can be seen at http://www.youtube.com/watch?v=P0R20h0B9Yk There is a slight interruption in the movies of the second flare, due to the Earth passing in-between the Sun and SDO. Images underneath depict the respective flares in the combined light of SDO/AIA 335/171, 193, and 304 (corona and transition zone). They show the flares resp. on 12 March at 10:35UT (onset; eruption in progress) and on 15 March at 9:29UT (post-flare coronal loops).
The eruption was accompanied by a considerable solar radio-disturbance that was recorded by the Humain Solar Radio Observatory (image below). It concerns a typical Type IV burst, which is long lasting radio noise due to energetic electrons being trapped in the post-flare loops forming in the aftermath of the eruptive event. Note that the diagonal stripes near the bottom of the figure are due to ground "interference". Indeed, at Humain, the Sun was still at a low elevation in the sky at the time of the event. As such, radio emissions reached the antenna directly and by reflection on the ground, creating these "fringes".
The associated CME had a speed of at least 950 km/s and was of the halo-type, meaning it was heading straight towards Earth. The CME struck our planet in the early morning hours of 17 March, with the speed of the solar wind jumping from about 400 km/s to 750 km/s. More importantly, the CME's magnetic field was quite strong and oriented southward, favoring moderate geomagnetic storming for a good part of the day. The region of good visibility of polar light was limited to the usual places (Scandinavia, Canada, Alaska and northern USA).
Credits - Data, images and movies for this topic were taken from SDO (http://sdo.gsfc.nasa.gov/ ), PROBA2/SWAP and LYRA (http://proba2.oma.be/ ), SOHO/Lasco C3 (http://sohowww.nascom.nasa.gov/ ), SIDC (http://www.sidc.oma.be/ ), STEREO-Behind (http://stereo.gsfc.nasa.gov/ ), ACE (http://www.swpc.noaa.gov/ace/ ) and Humain Solar Radio Observatory (http://sidc.oma.be/humain/index.php ).
The Total Electron Content in the ionosphere was disturbed over Europe on March 17, 2013.
The week started on March 11 with quiet conditions. On Tuesday March 12, the solar activity became eruptive featuring a partial halo Earth bound CME associated with a long duration C2.0 flare from NOAA 1690. On Friday March 15th an M1.2 flare occured and was accompanied by a full halo CME towards Earth. You can check CACTus, the software that detects automatically CMEs inSOHO/LASCO-C2 coronograph: http://sidc.oma.be/cactus/catalog/LASCO/2_5_0/qkl/2013/03/CME0048/CME.html

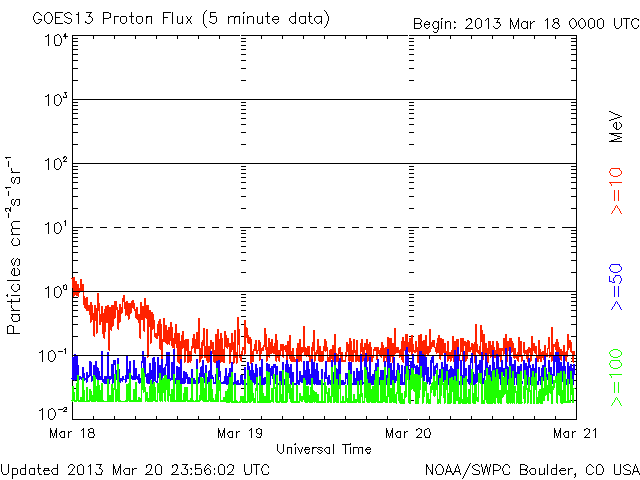

The GOES proton flux (>=10 MeV) levels increased accordingly on March 15 from 20:00UT and just passed the threshold of 10 pfu on March 16th around 20:00 UT. The flux dropped below the 10 pfu treshold on March 17th around 08:30 UT. It reached normal levels during the second part of March 18.

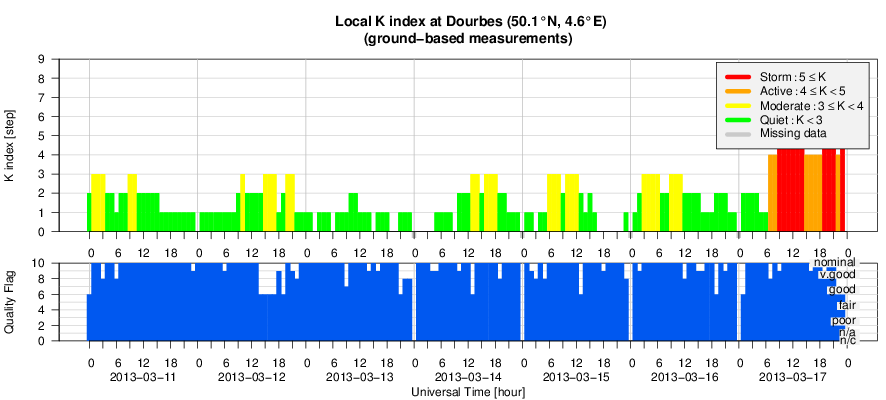

Geomagnetic activity was quiet to moderate during the week.

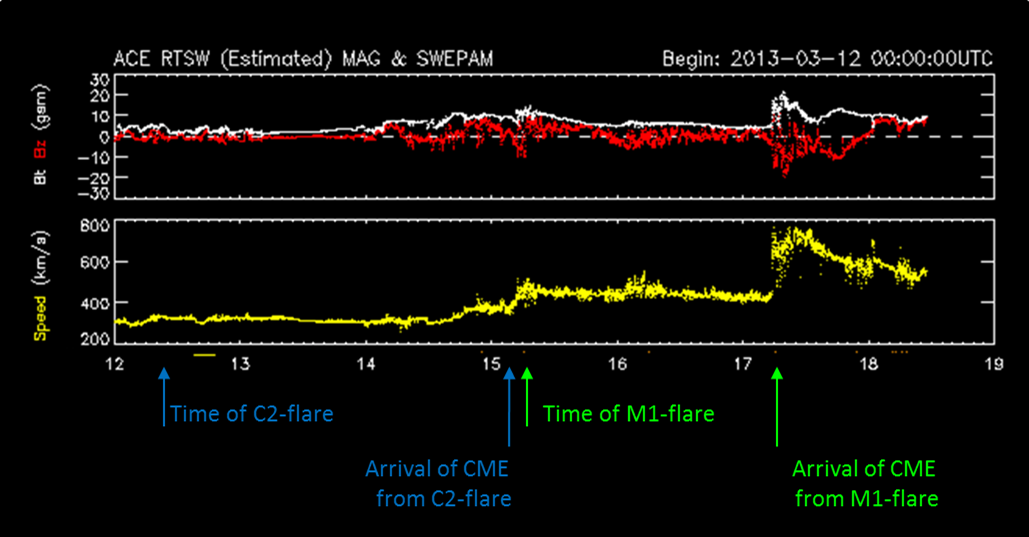

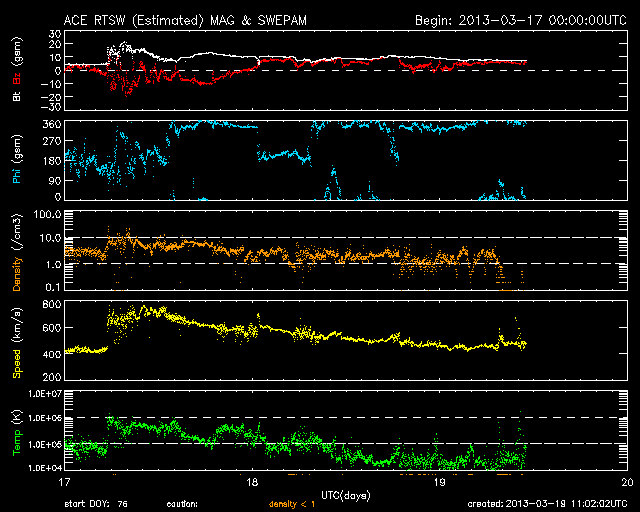

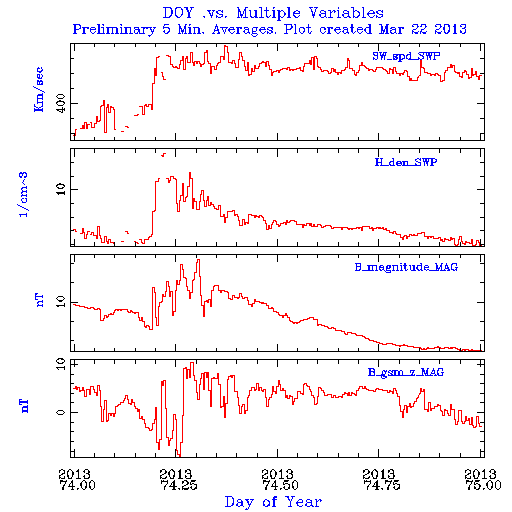

Even on Friday March 15 when the CME that left the Sun on Tuesday March 12th arrived. Only a small jump in the solar wind speed, density and temperature was measured by ACE. The Bz component of the interplanetary magnetic field stayed mainly positive. This was the reason why the geomagnetic influence stayed limited. The graph below shows the in situ measurements done by ACE of 4 solar wind parameters on March 15. The top panel is the solar wind speed, the second is the plasma density, the third shows the total magnetic field and the bottom panel shows the Bz component of the IMF.
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA | NOTE |
| 15 | 0546 | 0658 | 0835 | N11E12 | M1.1 | 1F | 150 | IV/2 | 16 | 1692 | Full halo CME |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |
Solar (flaring) activity was low during most of the week, except on Friday, when an M1.1 flare erupted at 5:46.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa.
This page also lists the recorded flaring events.
A weekly overview movie can be found here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR155/2013_03_11_00_00_31_2013_03_17_22_52_31_SWAP_174__AIA_304-hq.mp4 (SWAP174/AIA304 combination; HelioViewer.org).
Details about some of the events in this movie can be found further below (limited to SWAP imaging).
During the week, several interesting events occurred, some of which are presented below.
Tuesday 12th:
On Friday 15th, an M1.1 flare occurred in AR 11692, slightly north east of the center of the solar disk:
On Saturday 16th, a big filament eruption occurred:
For a movie, click here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR155/Events/SWAP_16032013_BIGPromEruption_NWQuadrant.mp4(SWAP difference) or here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR155/Events/2013_03_16_11_21_19_2013_03_16_17_20_07_SWAP_174__AIA_304-hq.mp4 (SWAP+AIA color - HelioViewer)
Sunday 17th:
The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
