1. Birth of a sunspot group (15 Apr 2013 - 21 Apr 2013)
2. Review of solar activity (15 Apr 2013 - 21 Apr 2013)
3. PROBA2 Observations (15 Apr 2013 - 21 Apr 2013)
4. Review of geomagnetic activity (15 Apr 2013 - 21 Apr 2013)
5. Geomagnetic Observations at Dourbes (15 Apr 2013 - 21 Apr 2013)
6. Review of ionospheric activity (15 Apr 2013 - 21 Apr 2013)
7. Future Events
8. New documents in the European Space Weather Portal Repository

Birth of a sunspot group (15 Apr 2013 - 21 Apr 2013)


It's always impressive to see sunspots develop from scratch, and cluster into an ominously looking sunspot group. Early on Friday 19 April, magnetic fields pushed through the solar surface and did just that in less than 24 hours. NOAA 1726 was born, and it was a quite large group: In the image underneath, there is room to easily fit 10 Earths between the outer edges of the two main spots!




The movie at http://www.youtube.com/watch?v=QJGjamrmVf4 covers the region's evolution from 19 April at midnight till 20 April at noon. The SDO/HMI magnetograms (http://sdo.gsfc.nasa.gov/data/ ) clearly show the development of at least 2 magnetic bipolar regions very close to each other. The trailing part of the leading region (right) is bumping into the leading part of the trailing region (left). Because these parts have opposite magnetic polarity, space weather forecasters kept a close eye on this region, as major flares may be produced in such configurations. For example, this was the case with NOAA 1263 on 9 August 2011 producing the strongest X-class solar flare so far this solar cycle.

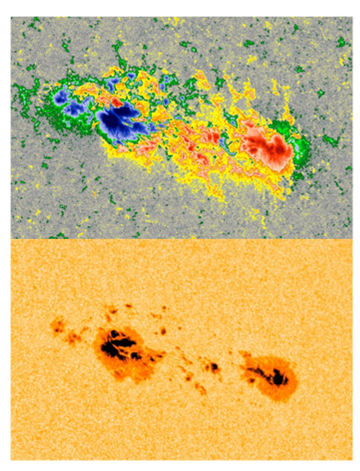

In white light, it is much harder to distinguish the two regions. Indeed, it is common practice to consider sunspot groups as one group if they are less than 10 degrees in longitude apart from each other. This was certainly the case here, hence NOAA 1726 is visually considered as one group. Note that similar guidelines exist for groups differing less than 5 degrees in latitude. These guidelines are applied with the necessary flexibility though, taking into account the evolution of the region and some other white light properties of sunspot groups, but without the use of magnetograms. That way, the number of sunspot groups remains comparable to those from the beginning of sunspot observations. Indeed, prior to the 20th century, no magnetograms existed and observers had only visual means to distinguish sunspot groups.




The clip based on SDO/AIA 171 images show a very dynamic region, with continuous magnetic restructuring and the gradual development of bundles of coronal loops between the principal spots of the group. Very quickly, small C-class flares are being produced, mainly near the "collision area" between regions of opposite magnetic polarity. As can be seen in the SDO images underneath (22 April, 07:45UT), a small opposite polarity spot is contained within the penumbra of the main sunspot. The red and blue areas are nearly touching each other, providing the ideal situation for at least medium class solar flares.



Review of solar activity (15 Apr 2013 - 21 Apr 2013)


During this week 11 Catania sunspot groups were present on the solar disc. The flaring activity was at the low C-class level with 36 C-class flares reported by GOES.

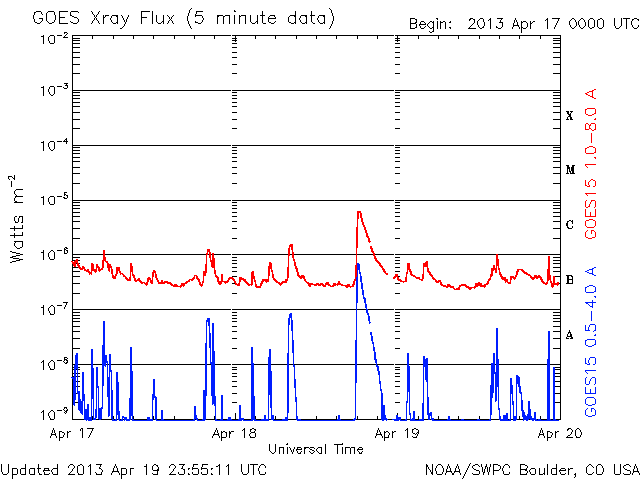

The majority of the flaring activity originated from the Catania sunspot group 51 (active region NOAA 1726). The strongest flare of the week was the long duration C6.5 flare on April 18, which peaked at 18:23 UT. The increase in X-ray radiation is seen in the graph below. The flare originated from the Catania sunspot group 43 (NOAA AR 1719), situated at that moment just behind the west solar limb.




Two partial halo coronal mass ejections (CMEs) were observed this week. The long-duration C6.5 flare reported on April 18 was associated with one partial halo CME. The CME was first seen in the SOHO/LASCO C2 field of view at 18:36 UT, had angular width of about 200 degrees and projected speed of about 570 km/s. The CME was associated with the coronal dimming, EIT-wave and a type II radio burst. Since the CME associated active region was behind the west solar limb the CME did not arrive at the Earth.


The second partial halo CME was observed on April 21. The CME was first seen in the SOHO/LASCO C2 field of view at 07:36 UT, had angular width of about 200 degrees and projected speed of about 750 km/s. The STEREO/SECCHI data showed that the
partial halo CME was a backside event associated with the flare at around W135 (45 degrees behind the west limb) as seen from the Earth.

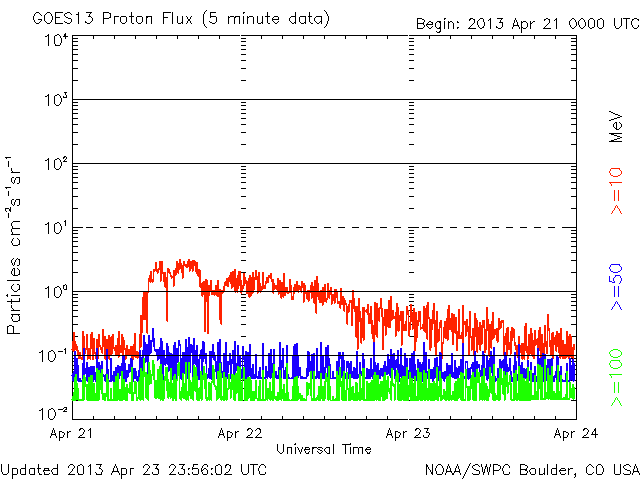

The enhancement of the Proton >10 MeV fluxes which started at about 09:55 UT and did not cross the event threshold, was also associated with this partial halo CME (see GOES proton flux curve below). The CME associated active region was behind the west solar limb and the CME was not expected to arrive at the Earth.


Two low-latitude coronal holes, the first one on the northern hemisphere and the second one on the southern hemisphere, were observed this week. The fast flows associated with the small coronal hole in the northern hemisphere did not arrive at the Earth, and the fast flow associated with the recurrent coronal hole on the southern hemisphere is expected to arrive at the Earth late on April 24.

PROBA2 Observations (15 Apr 2013 - 21 Apr 2013)


Solar (flaring) activity was low during the entire week.


In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa.


This page also lists the recorded flaring events.


A weekly overview movie can be found here http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR160/2013_04_15_12_00_19_2013_04_22_10_58_31_SWAP_174__AIA_304-hq.mp4 (SWAP174/AIA304 combination; HelioViewer.org).


During the week, several interesting events occurred, some of which are presented below.


Thursday 18 April:


CME on the west-limb at 18:00UT with nice post-flare loops afterwards
SWAP difference image (Difference movie: http://proba2.oma.be/swap/movies/20130418_swap_diff.mp4)


Saturday 20 April:


Active Region NOAA 1726 began to get more dynamic on 19 April, with several C-class flares. (Movie: http://proba2.oma.be/swap/movies/20130420_swap_movie.mp4)

Review of geomagnetic activity (15 Apr 2013 - 21 Apr 2013)

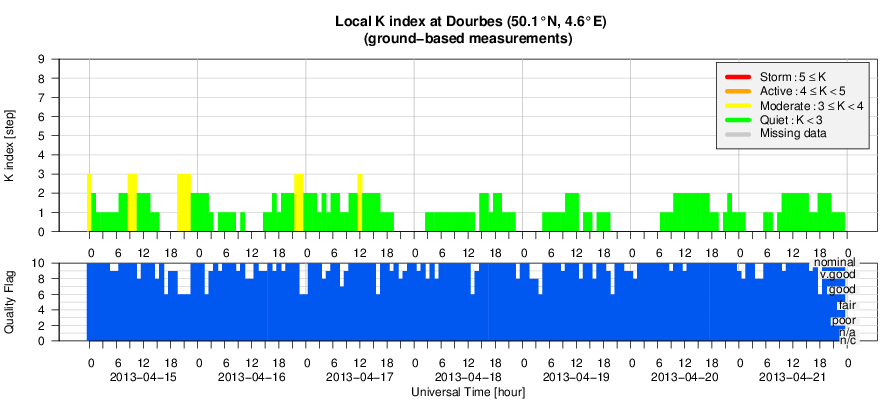

Geomagnetic conditions were quiet this week. The local station at Dourbes reported values up to K=3.


At the beginning of the week Earth was inside the magnetic cloud associated with the halo coronal mass ejection (CME) observed on the Sun on April 11 (shock arrival on April 13 - check http://stce.be/newsletter/pdf/2013/STCEnews20130418.pdf). The maximum value of the solar wind speed on April 15 was about 460 km/s. During the rest of the week, the Earth was inside a slow solar wind flow gradually decreasing to a value of about 280 km/s.
The magnetic cloud belonged to the ENW type (left-handed), and therefore did not contain southward interplanetary magnetic field.
The interplanetary magnetic field (IMF) magnitude had the maximum value of about 13 nT on April 15, when Earth was inside the magnetic cloud. During the rest of the week, the IMF magnitude was stable amounting about 5 nT.

Geomagnetic Observations at Dourbes (15 Apr 2013 - 21 Apr 2013)



Review of ionospheric activity (15 Apr 2013 - 21 Apr 2013)




The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.


The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.


See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
