Most often, people think about high energetic protons, space debris and altitude loss from an expanding atmosphere as the most important threats to the survival of earth-orbiting satellites. However, also the abundantly present electrons can constitute a lethal danger to the satellite's life. Many satellites such as Telstar 401 and Galaxy IV did not recover from electron induced effects, so two of them will be sketched here.

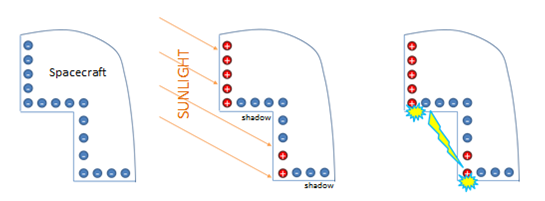

The first effect is called "surface charging". During night time, electrons have the tendency to charge the satellite's surface negatively. In sunlight, the satellite's surface becomes positively charged. Of course, satellites have an irregular shape, so parts of the spacecraft will still be in the shadow, leading locally to different charges. This may result in an electrical discharge on the surface. These are comparable to tiny "lightning strikes" like when you touch a door knob after having walked for some time on tapestry.
The discharges tend to occur around local midnight, due in part to the immersion or exit from shadow to light acting as a triggering mechanism for the discharge, but also and very significantly due to the increased plasmasheet electron fluxes in the midnight sector.
Though these discharges are generally not life threatening to the satellite, they may result in phantom commands and glitches in e.g. data telemetry, which are of course a nuisance. Surface charging related discharges can also occur on spacecraft solar arrays. These can have a significant effect on the performance of the solar arrays and the overall power capability of the spacecraft.

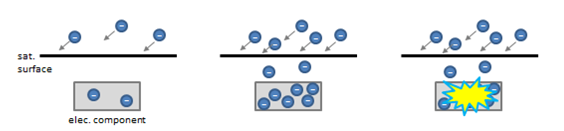

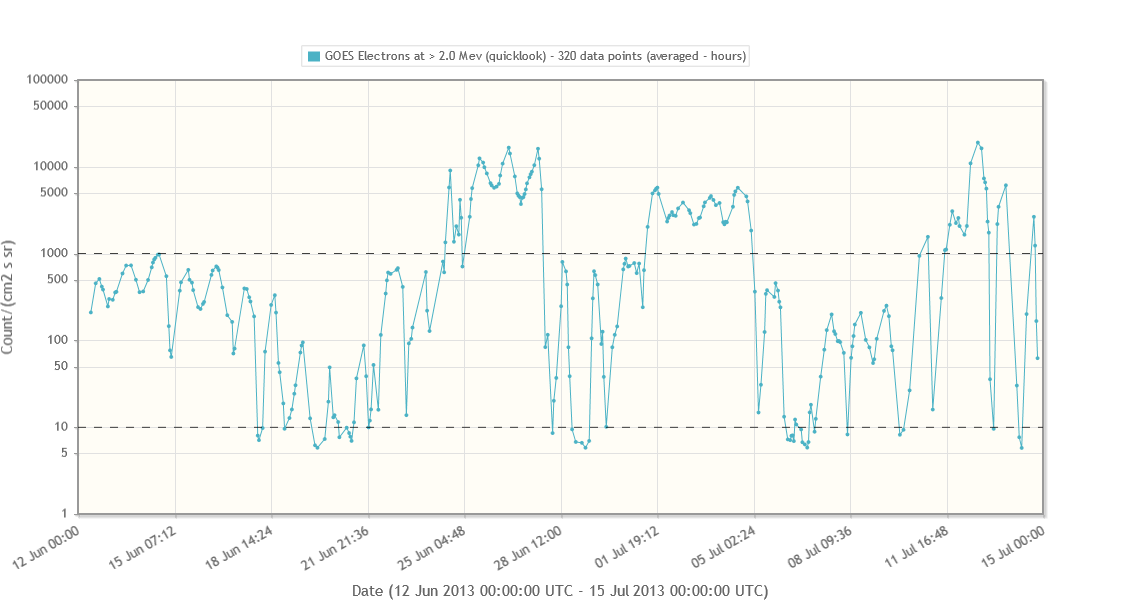

Electrons that have a somewhat higher energy, i.e. more than 0.1 MeV (mega electron volt; a unit of energy) can have a different effect. These particles can travel through several mm of aluminium shielding, and thus deposit themselves in critical electronic components in circuit boards and coax cables underneath the satellite's surface. As these particles accumulate, charge can build up until a threshold is reached. The result may be an electrical discharge, which may destroy the electronic components. This "deep-dielectric charging" manifests itself especially in high altitude spacecraft which pass through the Earth's radiation belts.
The effects of these discharges are more pronounced as the number of particles and their energies increase. These particle streams from coronal holes, plasma clouds and substorms (accelerated particles from the Earth's magnetotail) can contribute significantly to the charging of the satellite and its components. Alerts are usually given when the flux of electrons having energies of more than 2 MeV exceeds 1000 pfu (particle flux units), with hazardous conditions if this level is sustained for several days. Over the last month, several active periods were noted, such as 24-28 June, 1-5 July and 10-14 July. These were mainly due to the passing streams of coronal mass ejections and coronal holes. Satellite operators noted a significant increase in anomalies during these periods, thought to be due to repeated electrostatic discharges. Fortunately, all spacecraft survived and are in good health.
Solar activity was dominated by active regions NOAA 1785 and 1787 (See image by the Uccle Solar Equatorial Table (USET) underneath). Together, they produced 15 of this week's 17 C-class solar flares. Despite NOAA 1785's complex appearance, no medium class flares were produced. The strongest event was a C9.7 flare on 8 July peaking at 01:22UT.
Solar (flaring) activity was low throughout the week. Several high-level C flares occurred, but the M-level was not achieved.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa.
This page also lists the recorded flaring events.
A weekly overview movie can be found here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR172%20-%20Jul08toJul14_2013/2013_07_08_00_00_07_2013_07_14_22_52_55_SWAP_174__AIA_304-hq.mp4 (SWAP174/AIA304 combination; HelioViewer.org).
Details about some of this week’s events, can be found further below.
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR172%20-%20Jul08toJul14_2013/Events/20130709_eruptionSE_0644_swap_diff.mp4 (SWAP difference movie)
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR172%20-%20Jul08toJul14_2013/Events/20130709_eruptionNECenter_1452_swap_diff.mp4 (SWAP difference movie)
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR172%20-%20Jul08toJul14_2013/Events/20130712_eruptionNELimb_1551_swap_diff.mp4 (SWAP difference movie)
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR172%20-%20Jul08toJul14_2013/Events/20130712_eruptionSWLimb_1733_swap_diff.mp4 (SWAP difference movie)
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR172%20-%20Jul08toJul14_2013/Events/20130713_eruptionSEquad_0610_swap_diff.mp4 (SWAP difference movie)

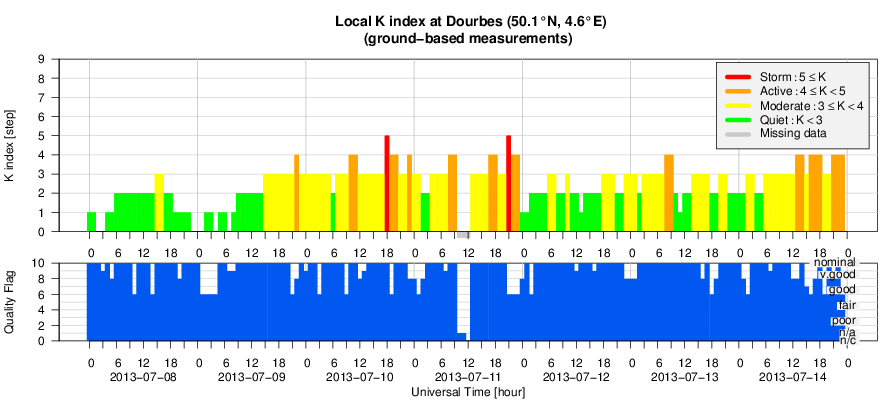

The geomagnetic field was at quiet to unsettled levels for most of the week. From the end of 9 July till 11 July, active to minor storm levels were registered due to the arrival of a coronal mass ejection (CME) from a solar eruption that probably took place on 6 July.

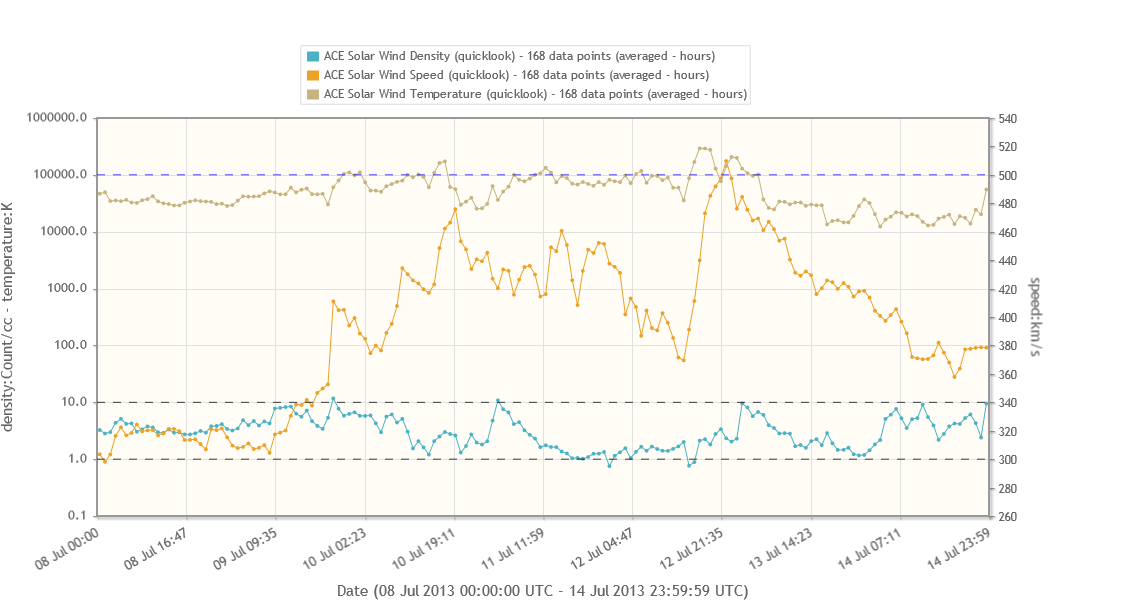

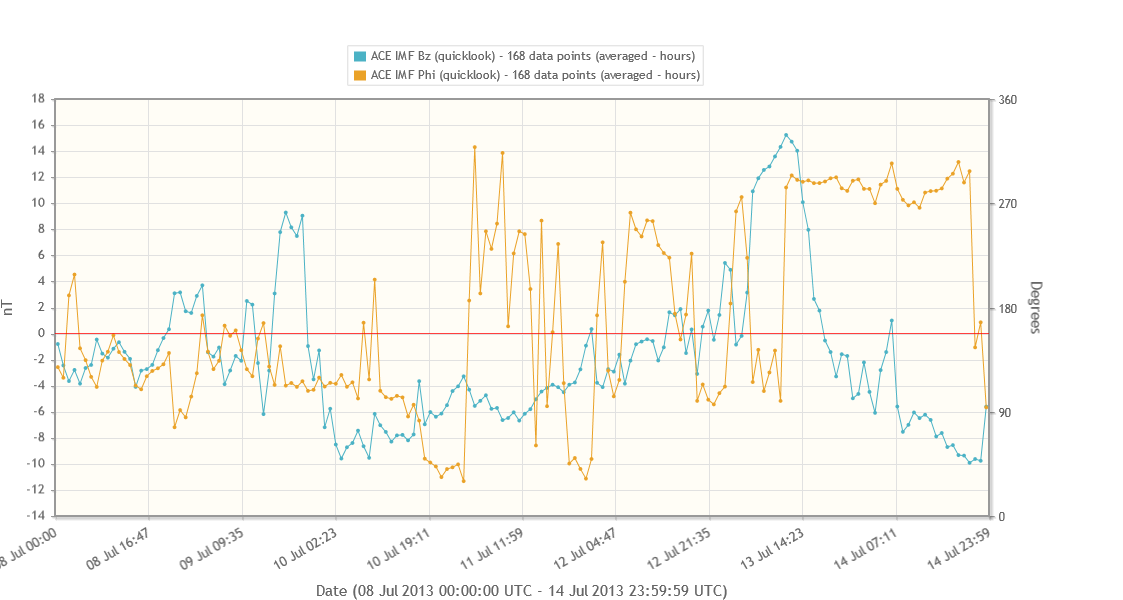

On 13 and 14 July, active levels were reached due to the arrival of the CME from the 9 July filament eruption. During both periods, the magnitude of the interplanetary magnetic field reached 16 nT with the north/south component as low as -10 nT.

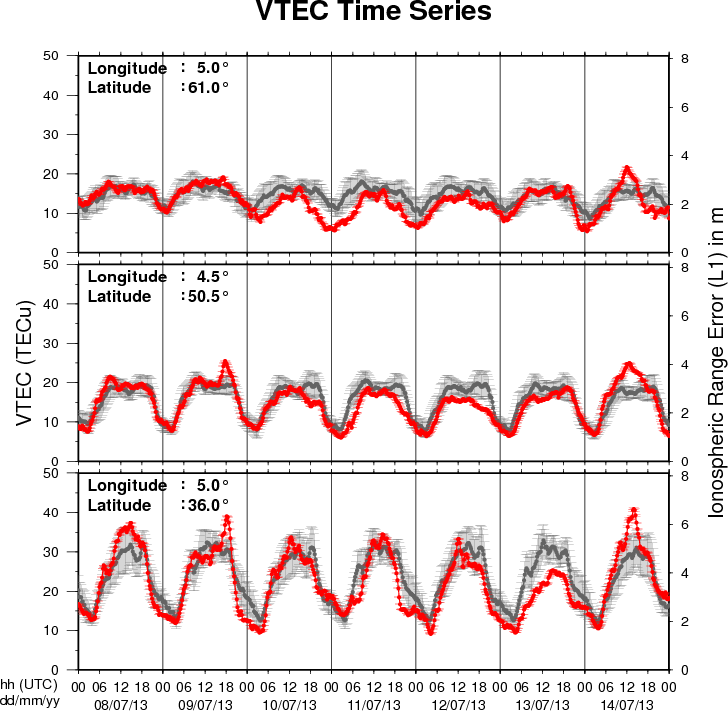

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
