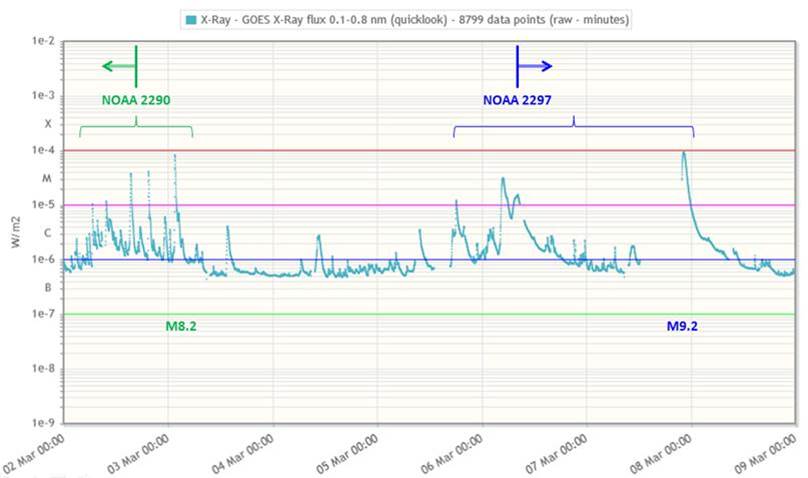

Though the Sun was devoid of big sunspot groups this week, no less than 9 M-class flares were recorded. These medium flares were produced by only 2 active regions: NOAA 2290 (5) and NOAA 2297. Interestingly, both regions were at the solar limb when they unleashed their flares. In fact, the last two (and strongest) M-class events of NOAA 2290 were produced when the region had already rounded the northwest solar limb, whereas NOAA 2297 had already released 2 of its 4 M-class events before it rounded the southeast limb.
Both regions were not very big, but they were magnetically complex. This resulted in two strong flares: NOAA 2290 produced an M8.2 flare on 03 March peaking at 01:35UT, and NOAA 2297 produced an M9.2 flare on 07 March peaking at 02:22UT. In all cases, the bulk of the related coronal mass ejections was not directed to Earth.
This movie at http://youtu.be/qHALNFnTp-A shows 3 M-class flares in EUV as seen by SDO/AIA (http://sdo.gsfc.nasa.gov/). It first shows the impressive eruption related to the M3.7 flare from NOAA 2297 on 02 March in temperatures of about 80.000 degrees (AIA304). This is followed by the duo of M-class flares early on 06 March (M3.0 and M1.5), showing a very hot cusp (pale blue flamelike feature) over the post-flare coronal loops. This is a clip combining images in hot temperatures (AIA131; blue; multimillion degrees) with images seen in the AIA171 filter (yellow; temperatures around 700.000 degrees). The last clip shows the impressive coronal loops that followed the M9.2 flare late on 07 March (AIA171).
The ionosphere is a layer of charged particles in the Earth's atmosphere, located from about 60km to 1000km above the Earth's surface.
As the Sun's radiation ionizes this layer, the ionosphere is a plasma of ions and free electrons (hence its name). These electrons perturb the propagation of communication signals by inducing a so-called ionospheric delay. The number of electrons is represented by the Vertical Total Electron Content (VTEC). It is directly related to the signal propagation delay due to the ionosphere.
We see a strange behaviour of the red curve on the early morning March 01 and 02 due to a disturbed geomagnetic field. The solar wind emanating from a southern polar coronal hole (see 'Geomagnetic Activity') left a clear imprint in the ionosphere.
check
http://gnss.be/Atmospheric_Maps/ionospheric_event.php?date=2015-03-01
Solar flare activity fluctuated between low and moderate during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed:http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 258).
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_03_02.mp4
Details about some of this week’s events, can be found further below.
Solar activity was concentrated in 2 periods. NOAA 2290 was responsible for 5 M-class flares in 24 hours, with the last and strongest (M8.2) flare peaking early on 3 March (01:35UT) from behind the northwest limb. None of the associated CMEs had an Earth-directed component. A few days later, early on 06 March, NOAA 2297 rounded the southeast limb having produced already 2 M-class flares. This active region was also the source of the strongest event of the week, an M9.2 flare peaking on 07 March at 22:22UT. The bulk of the associated CME was directed away from the Earth. Combined, NOAA 2290 and 2297 produced all 9 M-class flares and 30 of the 38 C-class flares this week. The proton flux was at nominal levels during the entire period.
The left picture taken by SDO/HMI in visible light shows the photospheric appearance of NOAA AR 2290 on Feb 27. At the moment of the M-flares, March 02 and 03, the NOAA 2290 was not visible any more. The right picture shows NOAA AR 2297 on the day it produced 2 M-flares: March 06.
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA |
| 02 | 0631 | 0639 | 0644 | N19W84 | M1.0 | 1F | III/1VI/1II/1 | 90 | 2290 | |
| 02 | 0937 | 0948 | 0958 | M1.1 | 90 | 2290 | ||||
| 02 | 0852 | 0948 | 0958 | M1.1 | 90 | 2290 | ||||
| 02 | 1510 | 1528 | 1537 | M3.7 | 16 | 90 | 2290 | |||
| 02 | 1921 | 1931 | 1936 | M4.1 | III/1 | 90 | 2290 | |||
| 03 | 0125 | 0135 | 0142 | N21W87 | M8.2 | SB | IV/1II/1III/1 | 2290 | ||
| 05 | 1706 | 1811 | 1826 | M1.2 | 2297 | |||||
| 06 | 0414 | 0457 | 0527 | M3.0 | 120 | III/1 | 2297 | |||
| 06 | 0655 | 0815 | 0828 | M1.5 | CTM/1 | 2297 | ||||
| 07 | 2145 | 2222 | 2258 | M9.2 | 260 | II/1IV/2 | 2297 |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |

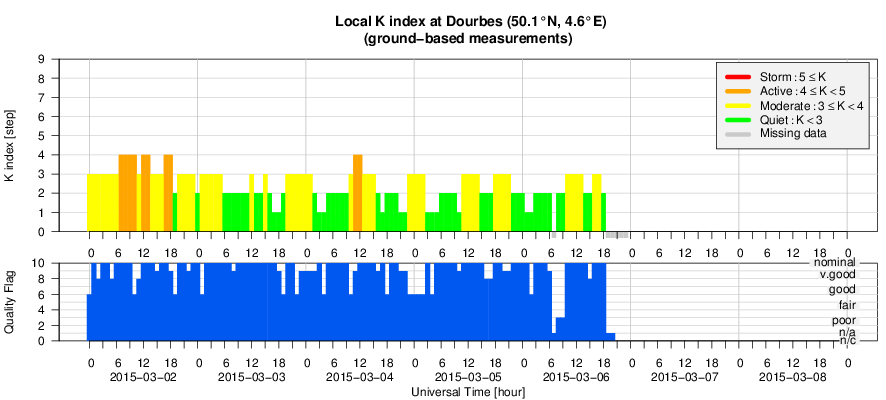

At the beginning of the week, the geomagnetic field was under the influence of a high speed stream from a negative polarity southern polar coronal hole (CH). It resulted in active (Dourbes) to minor storming conditions (Kp=5) on 02 March. The CH is clearly visible in the SDO AIA image below.
A sector boundary crossing occurred on 04 March, with the direction of the Interplanetary Magnetic field changing from towards to away from the Sun. Unsettled to locally (Dourbes) active geomagnetic conditions were registered.
Starting on 06 March, Earth's magnetic field became influenced by the high-speed stream of a positive polarity equatorial CH (see picture below) resulting in quiet to sporadically active geomagnetic conditions for the remainder of the week.

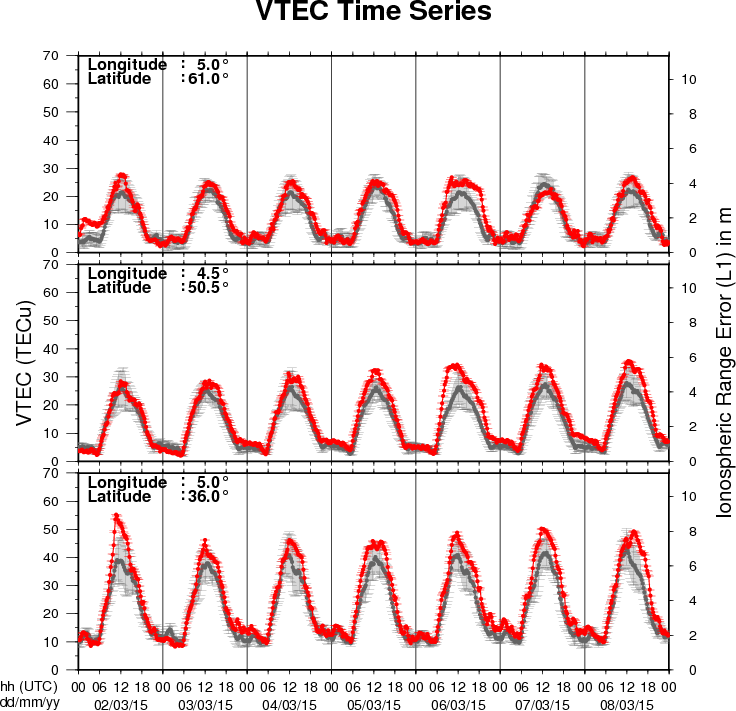

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
