In absence of any large or complex sunspot group, this week's main event was another spectacular filament eruption. This eruption took place late on 4 April and was associated with a long duration C3.8 double ribbon flare that started at 22:16UT, peaked at 00:07UT, and ended at 01:45UT. "Double ribbon" here means that there are two bright ribbons parallel and along the location of the ejected filament.

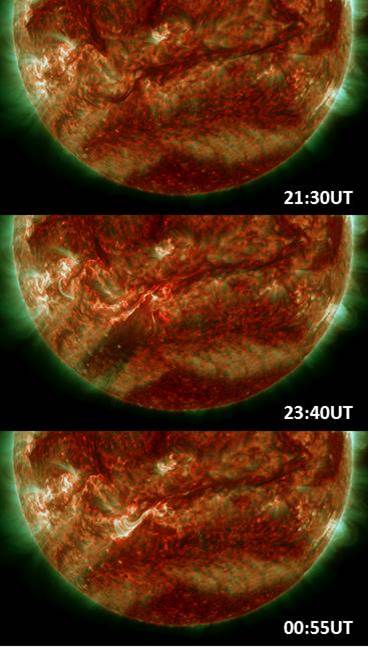

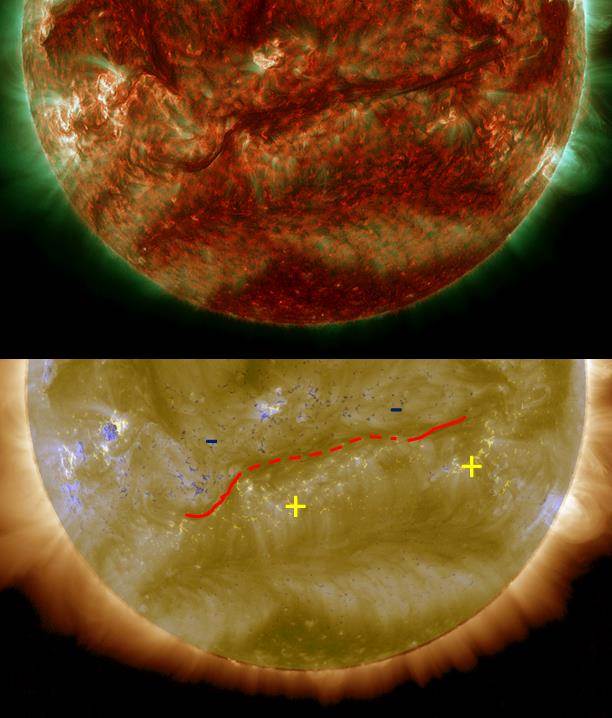

The image above as well as the top part of figure underneath shows the combined view in extreme ultraviolet (EUV) from the SDO AIA 193 (green; 1.3 million degrees) and AIA 304 (brownish; 80.000 degrees) filters. In the bottom part, a magnetogram is overlaid showing how the filament is squeezed between magnetic fields of opposite polarity (yellow: positive, coming out; blue: negative, returning to the solar interior). The filament is indicated in red, and the filament channel is red-dashed.
The first three clips in the movie at https://youtu.be/6zA1nwESiWc show the evolution of this filament eruption in the above mentioned filters, as well as a zoom. It shows the untwisting of the filament as it erupts, and the obscuration of the underlying solar atmosphere by the ejected material. Also, the series of post-eruption coronal loops -a so-called "arcade"- are well visible, with their footpoints rooted in the elements of opposite magnetic polarity along the filament channel.

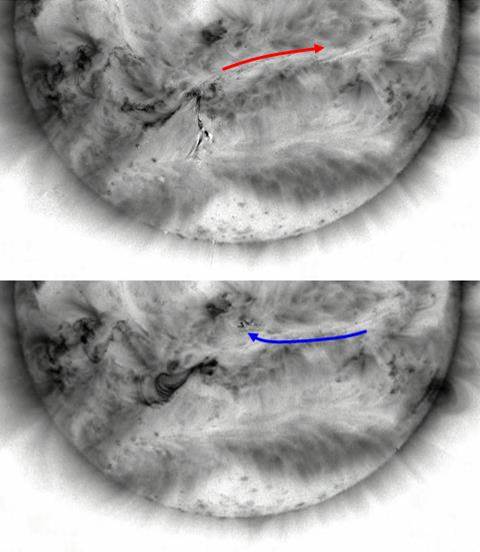

The last two clips of the movie show the evolution of the eruption in AIA 193 and a difference movie (one image subtracted from the previous). The latter provides a more detailed view on the specifics of the eruption, in particular the movement of material all along the filament channel as annotated in the images underneath.
Credits - Images for the movie clips were taken from SDO (http://sdo.gsfc.nasa.gov/data/aiahmi/) and JHelioviewer (http://www.jhelioviewer.org/).
Solar flare activity fluctuated between quiet and low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed:http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 262).
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_03_30.mp4
Details about some of this week’s events, can be found further below.
Eruption on the east limb @ 05:28 SWAP image
Find a movie of the event here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150402_swap_movie.mp4
Eruption on the east limb @ 07:39 SWAP image
Find a movie of the event here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150403_swap_movie.mp4
Filament eruption in the South near disk centre @ 23:18 SWAP image
Find a movie of the event here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150404_swap_movie.mp4
Ten active regions were reported by NOAA during the week, with NOAA AR numbers 2303, 2305, 2312, 2313, 2315, 2316, 2317, 2318, 2319, 2320. The strongest flare of the week was the C4.7 flare peaking at 01:52 UT on March 30 in the NOAA AR 2303 that at that moment just passed behind the north-west solar limb.
A partial halo CME (angular width around 150 degrees) was first seen in the SOHO/LASCO C2 field of view at 05:48 UT on April 2. It was associated with the C1.3 flare peaking at 05:34 UT on April 2 that occurred in the active region just behind the east solar limb (future NOAA AR 2318). It was therefore a far side limb event, so it did not arrive at the Earth.
A weak full halo CME was first seen in the LASCO C2 field of view at 12:48 UT on April 3. Due to absence of EUV signatures of the CME in the SDO/AIA data at that time, we believe this CME is a far side event as well.
A partial halo CME was observed by SOHO/LASCO on April 4-5. It first appeared in the LASCO C2 field of view at 23:36 UT on April 4, had the angular width of 230 degrees and projected plane-of-the-sky speed around 760 km/s.

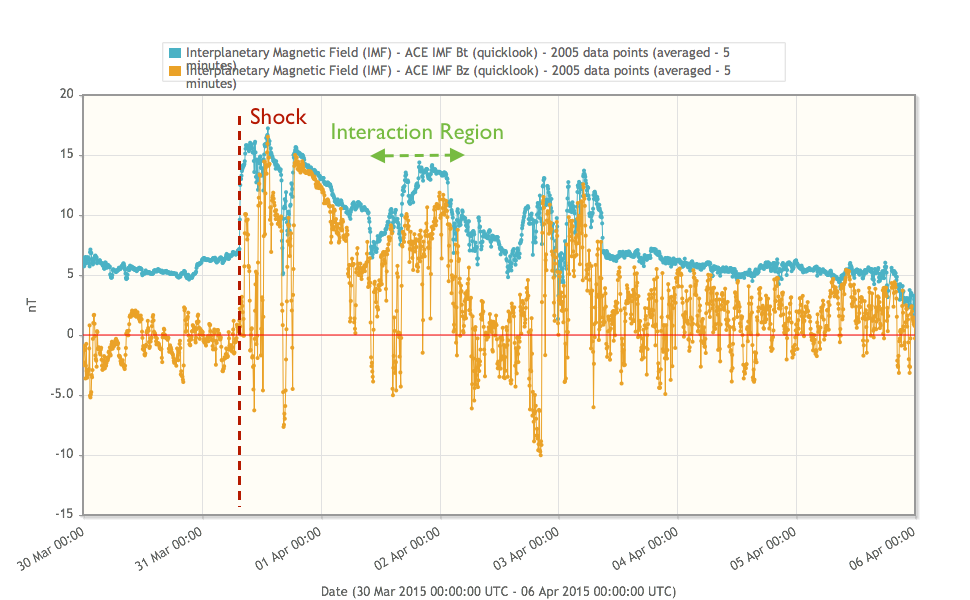

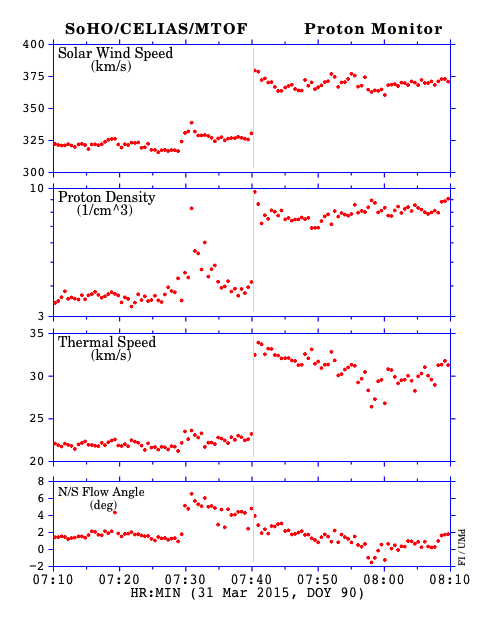

In the beginning of the week the Earth was inside a slow solar wind flow, and the geomagnetic conditions were quiet. On March 31 at 07:39 UT an interplanetary shock wave was detected by ACE and SOHO/CELIAS (see graph).
The shock was followed by an ICME with the interplanetary magnetic field (IMF) magnitude up to 18 nT. However, due to the predominantly northward direction of the IMF, the geomagnetic conditions remained on the quiet to unsettled level. The solar source of the ICME is not clear.
On April 2 the passage of the ICME was over, and the Earth entered a slow solar wind flow followed by the arrival (early on April 3) of the fast stream from a trans-equatorial coronal hole that reached the solar central meridian late on March 30.

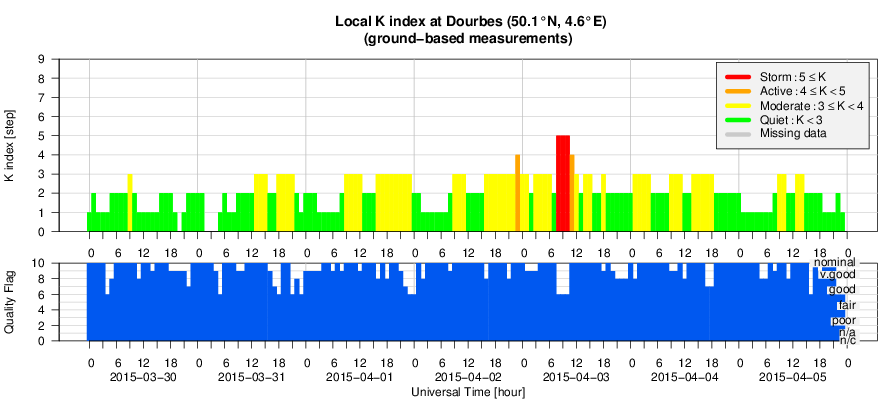

In the evening of April 2, in the interaction region between the fast stream and the preceding slow flow, the IMF Bz component stayed negative (down to -10 nT) for around 3 hours, so active geomagnetic conditions (K = 4) were reported by IZMIRAN and NOAA. (Intervals of K = 5 reported on April 3 by Dourbes were most probably spurious.) During the passage of the fast stream, the geomagnetic conditions were on the quiet to unsettled level, with only one interval of active geomagnetic conditions (K = 4) reported by IZMIRAN on April 4.

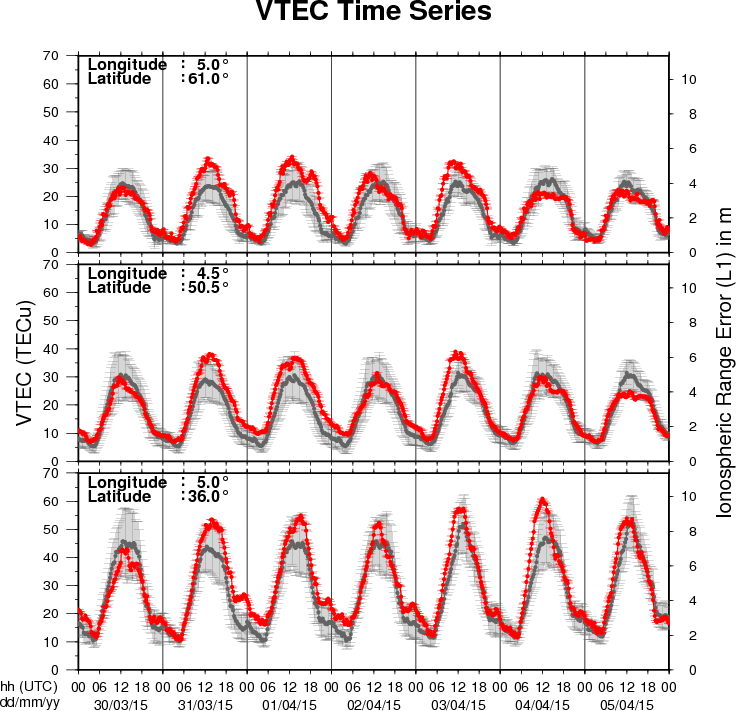

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
