At the end of a rather dull week, a cluster of sunspots appeared from behind the northeast limb. The active region was numbered NOAA 2321, had a sunspot area of about 4 times the surface area of the Earth, and produced an M1 flare on 12 April.

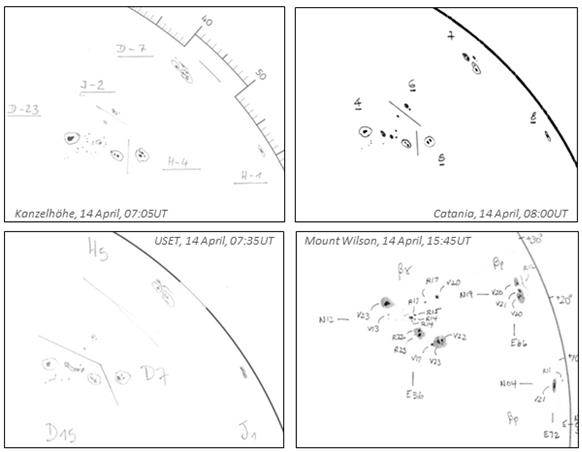

Solar observers had a hard time deciding if this concerned one sunspot group, or two or three closely packed sunspot regions. NOAA, ASSA and Mount Wilson classified this as one group, USET as two groups, and Catania, Kanzelhöhe and STAR as three groups. This becomes clear in a comparison of drawings made on 14 April by Kanzelhöhe, Catania, USET and Mount Wilson (see Note 1).
A senior observer from SILSO commented that he was also in favor of splitting in three groups: "... I would separate the spot in the northeast, with a doubt about separating the double big spot in the southeast. ... This big clustering is an example of the few complex groupings appearing during each solar cycle. ... Such tricky cases are always associated with a tight clustering of groups sitting next to each other, i.e. when the separation between spots of different groups is equal or less than the dimension of each group. ..." A comparison of an SDO "white light" image with a magnetogram (14 April, 05:12UT) reveals the magnetically very complex situation (see Note 2).

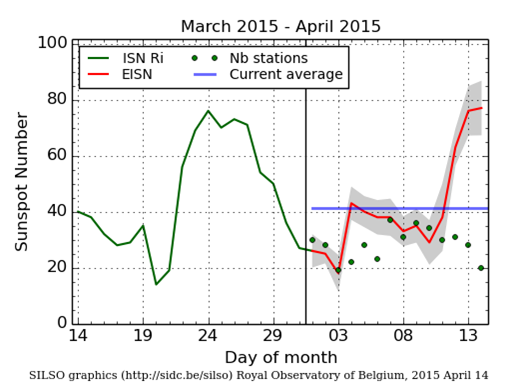

SILSO also comments that "... As splitting can make a large difference in the sunspot number, the choice of splitting can considerably raise the level of the sunspot index. This is reflected by the steep rise of the estimated international sunspot number (EISN) over the past 2 days, as can be seen in the graph underneath. However, as this involves only a few cases per cycle, which have an influence over less than 13 days, the impact is limited with respect to the overall envelope of the solar cycle."
Note 1: Never mind the annotations on the drawings. These concern sunspot group classifications, number of sunspots, specific group numbers, location of the sunspot group, and specific magnetic information on the sunspots.
Note 2: Solar observers are not allowed to use magnetograms when they are splitting or counting sunspot groups. That way, their obtained sunspot numbers remain comparable to those from let's say prior to 1900, when no such magnetic observations were available. Of course, magnetograms can be used when it comes to magnetic classifications or solar flare predictions.
Credits - Data and imagery were taken from NOAA (http://www.swpc.noaa.gov/products/solar-region-summary), ASSA (http://www.spaceweather.go.kr/assa), USET (http://www.sidc.be/uset/), Catania (http://web.ct.astro.it/sun/draw.jpg), Kanzelhöhe (http://cesar.kso.ac.at/), STAR (http://www.solen.info/solar/index.html), Mount Wilson (http://obs.astro.ucla.edu/images/cur_drw.jpg), Debrecen (http://fenyi.solarobs.unideb.hu/DPD/), SDO (http://sdo.gsfc.nasa.gov/) and SILSO (http://sidc.oma.be/silso/).
The PROBA2 PI-team welcomes research proposals for the sixth round of its Guest Investigator program for research based on SWAP and LYRA data analysis by scientists outside the SWAP and LYRA PI-teams. We encourage in particular early-career post-docs and PhD students to apply, although more senior guest investigators' proposals are also welcome. In this round we anticipate funding for around six guest investigators or teams who will visit the PROBA2 Science Center at the Royal Observatory of Belgium, in Brussels, between August 2015 and April 2016.
Selected proposers will be invited to spend a few weeks with the PI teams to obtain expert knowledge on the instruments, to participate in the daily commanding of the SWAP and LYRA instruments according to the needs of their data analysis proposal, and to conduct their research. Guest investigators may be reimbursed for travel, accommodation and living expenses up to a maximum of 5000 euro. Limited support to present the results at an international conference (during the visit at P2SC) can also be considered.
During the selection process, special consideration will be given to early-career scientists and PhD students, collaborative research teams with members from more than one research institute (funding above the 5000 euro level may be approved for such teams), and to proposals addressing research topics to which SWAP and LYRA are particularly well-suited.
More details about the application process can be found here:
http://proba2.oma.be/SixthGICall
or by emailing: swap_lyra@oma.be
Deadline: Proposals must be received by May 31, 2015
The PROBA2 team
Solar flare activity fluctuated between low and moderate during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed:
http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 263).
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_04_06.mp4
Details about some of this week’s events, can be found further below.

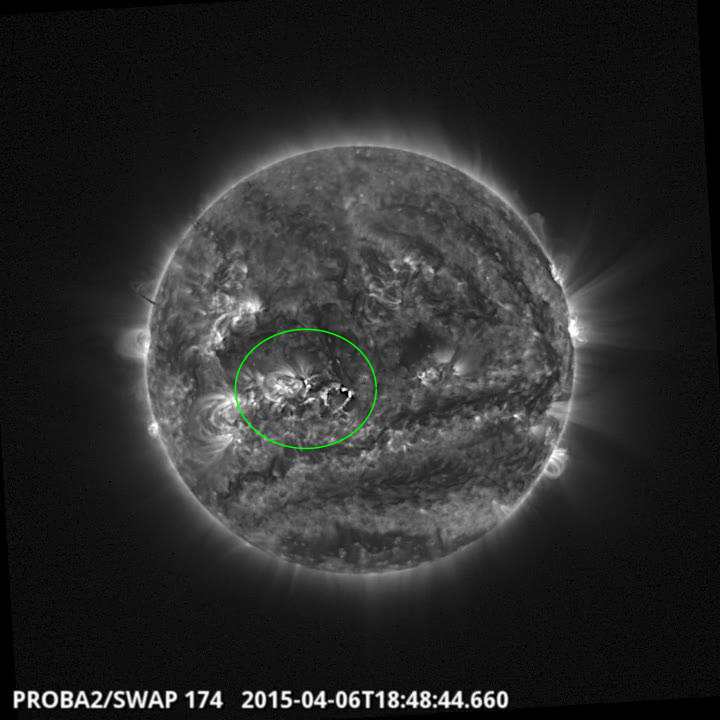

There was an eruption located close to disk centre @ 18:48 UT See the above SWAP image.
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150406_swap_movie.mp4
There was an eruption on the West limb @ 23:23 See the above SWAP image.
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150412_swap_movie.mp4
A total of 28 C flares and 2 M flares were observed during the week. The week was kicked-off by NOAA AR 2318. This active region was further on very quiet. Beta-delta region NOAA AR 2320 took over duty producing twelve C-flares and one M-flare from April 6 to 10. On April 11, beta-gamma region AR 2321 produced four C flares. On April 12, AR 2320 continued with C-flares as in the previous days together with AR 2321 which even released an M-flare. Beta region AR 2323 joined the club of C-flaring regions that day.
AR 2320 released a C3.0 flare peaking at 19:06 UT on April 6, which was associated to a dimming, an EUV wave, a CME and a Type II radio burst. The CME was first observed by LASCO C2 at 19:24 UT and had an angular extent of about 140 degrees. The plane-of-sky speed derived by CACTUS was 339 km/s, while the Type II burst corresponds to a speed of 691 km/s.
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA |
| 08 | 1437 | 1443 | 1447 | S14W4 | M1.4 | 1B | 110 | III/1 | 22 | 2320 |
| 12 | 0851 | 0950 | 1044 | N13E62 | M1.1 | SF | 160 | V/2III/2 | 2321 |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |
The solar wind speed observed by ACE gradually decreased from about 610 to 340 km/s from April 6 to 8, while the magnitude of the Interplanetary Magnetic Field (IMF) varied between 1 and 6 nT.
A small disturbance in the solar wind was observed by ACE around 01:10 UT and a second one around 09:12 UT on April 9. These disturbances were possibly linked to the CME of April 6. The solar wind speed increased from about 340 to a maximal value of 490 km/s, while the magnitude of the IMF rose from 6 to 20 nT.

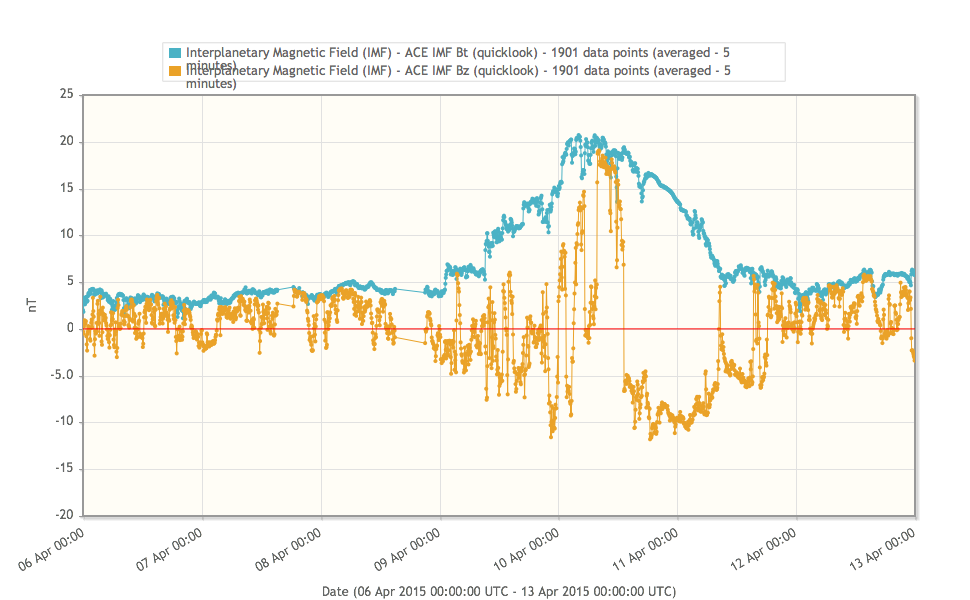

Bz was below -5 nT between 22:00 (on April 9) and 00:00 UT (start April 10), and between 01:30 and 02:45 UT on April 10, with a lowest Bz value of -12 nT.

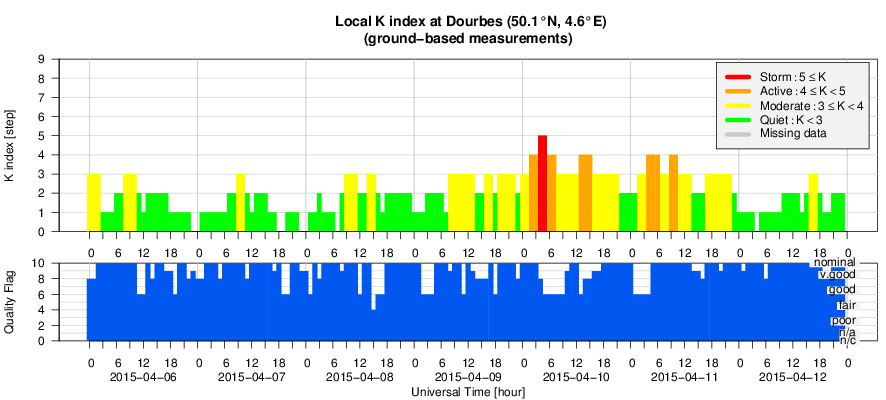

K Dourbes registered a minor geomagnetic storm (K Dourbes equals 5) between 4h and 6h UT, while NOAA Kp reached 5 between 0h and 3h UT; 6 between 3h and 6h UT; and again 5 between 6h and 9h UT. Quiet (K Dourbes less than 4) to active (K Dourbes equals 4) geomagnetic conditions prevailed on April 11, while April 12 saw only quiet geomagnetic levels.

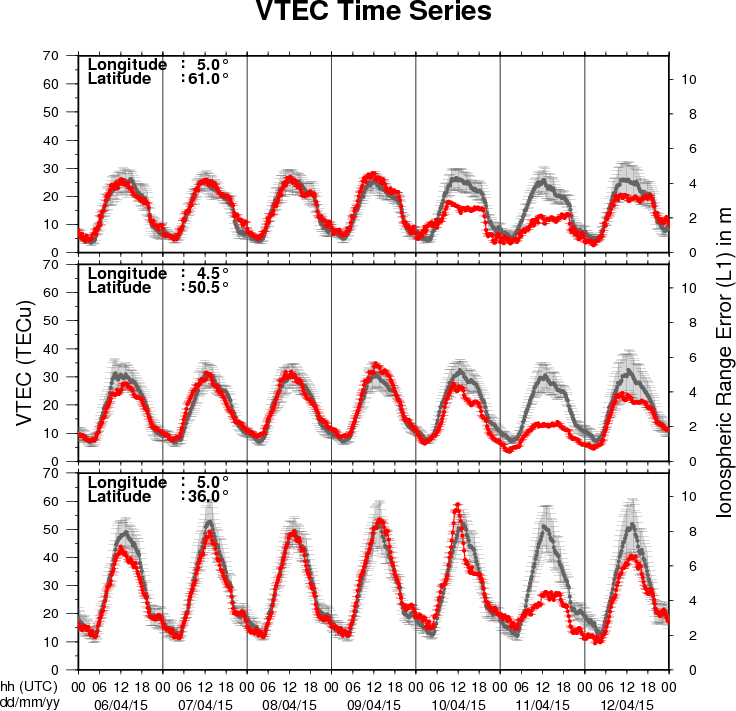

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
