A very nice filament eruption occurred during the morning hours of 19 July. It was associated with a long-duration C2.1 flare that started at 09:22UT, peaked at 10:40UT, and ended at 13:02UT though it would take another 6 to 8 hours before the x-ray flux was back at its pre-event levels. The eruption of the filament itself took place between 07:00 and 10:00UT.
This eruption was very likely the result of an instability created by an earlier filament eruption in the northwest quadrant between 00:00 and 03:00UT. Indeed, in the first clip of this movie at https://youtu.be/kEkuJhA7c8s (SDO/AIA304; 00:00-12:00UT), one can see how this filament rises, but with a substantial part gliding back to the solar surface along the magnetic field lines very close to the up-to-then rather quiet filament near the southwest limb. After a brief eruption between 04:00 and 06:00UT, the filament then fully erupted starting around 07:00UT. The intricate details can be seen in a zoom of the region, i.e. in clip 2 (SDO/AIA304; 06:30-12:30UT), as well as in clip 3 combining AIA171 and AIA131 imagery showing a better contrast between the cold (dark purple) and hot (sky blue) areas of the eruption.
The images below are rotated stills from this combo clip showing the rise of the filament at 07:50UT, the eruption itself with some coronal dimming to the southeast ("bottom right") at 09:35UT, and finally the post-eruption coronal loops and the hot material on top of these series ("top left") at 11:55UT.
The associated coronal mass ejection (CME) was rather wide (about 120 degrees) and coincided with another, smaller CME to the northwest. It had a plane-of-the-sky speed of about 760 km/s and, though it was mostly directed away from the Earth, analysis of coronagraphic imagery revealed that this CME could deliver a glancing blow on 22-23 July.
Credits - Imagery from SDO (http://sdo.gsfc.nasa.gov/data/aiahmi/) and (J)Helioviewer (http://helioviewer.ias.u-psud.fr/helioviewer/#).
Solar activity was very low during the week, with only 4 low C-class flares recorded.
The strongest flare was a long-duration C2.1 flare related to a complex filament eruption in the southwest quadrant, peaking on 19 July at 10:40UT. The associated coronal mass ejection (CME) had a plane-of-the-sky speed of 760 km/s, and was first seen in LASCO/C2 imagery by CACTus on 09:48UT. Though the bulk of this CME was directed away from Earth, coronagraphic imagery indicated that a glancing blow could impact Earth on 22 or early 23 July.

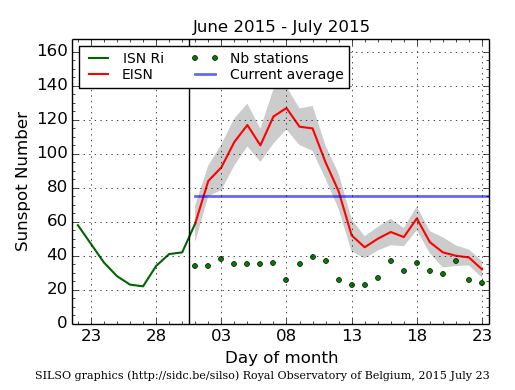

Daily Estimated International Sunspot Number (EISN, red curve with shaded error) derived by a simplified method from real-time data from the worldwide SILSO network. It extends the official Sunspot Number from the full processing of the preceding month (green line). The plot shows the last 30 days (~ one solar rotation). The horizontal blue line shows the current monthly average, while the green dots give the number of stations included in the calculation of the EISN for each day.

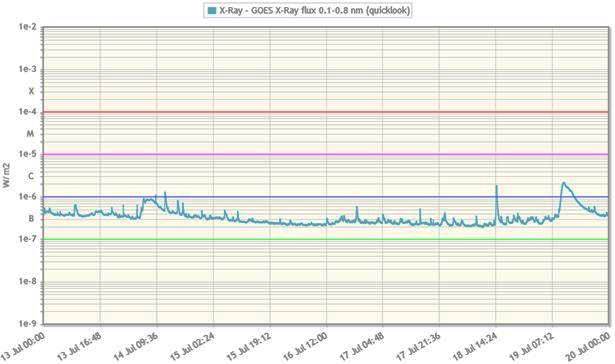

Solar flare activity fluctuated between very low and low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa This page also lists the recorded flaring events.
A weekly overview movie can be found here at http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_07_13.mp4 (SWAP week 277).
Details about some of this week's events, can be found further below.
Large-scale filament eruption (southwest quadrant) at about 07:00 UT - SWAP image
Find a movie of the event here (SWAP movie) at http://proba2.oma.be/swap/movies/20150719_swap_movie.mp4
This eruption was apparently linked to an earlier eruption from the northwest, which began early in the day, shortly after 00:00 UT. The northern eruption activated a filament channel that extended as far south as the erupting filament seen in the image above. The eruption of the southern filament was a multi-step process and is not well understood at the moment. An analysis of this event is ongoing.

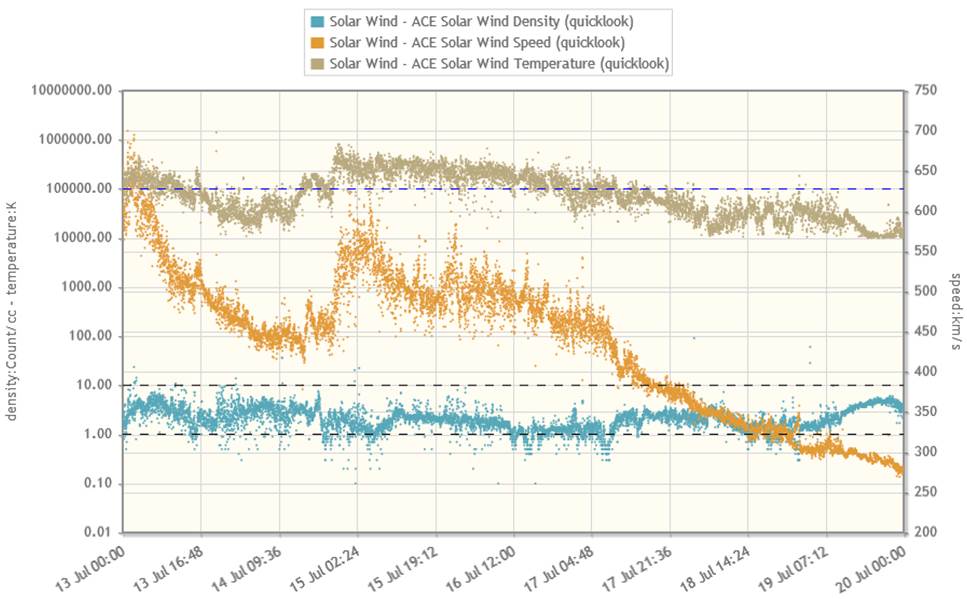

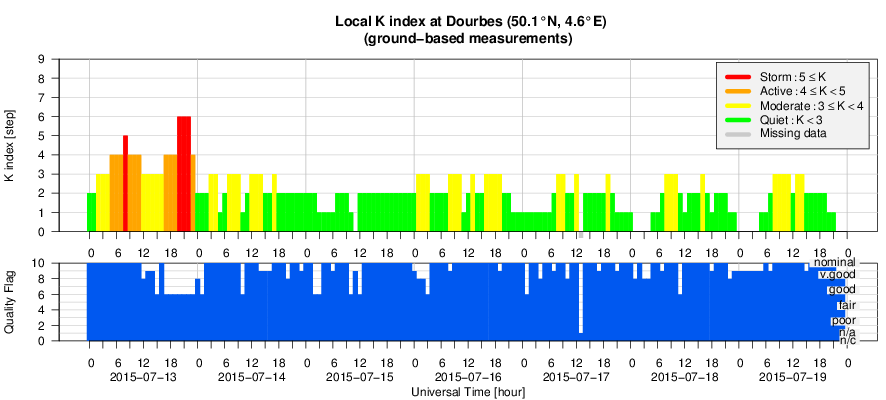

On 13 July, there were several episodes of minor (Kp=5) to locally moderate (K=6 at Dourbes) geomagnetic storming under the influence of a coronal hole high speed stream. Solar wind speed started with values near 650 km/s, but ended the week with only about 280 km/s. The geomagnetic field was quiet to unsettled for the rest of the week.

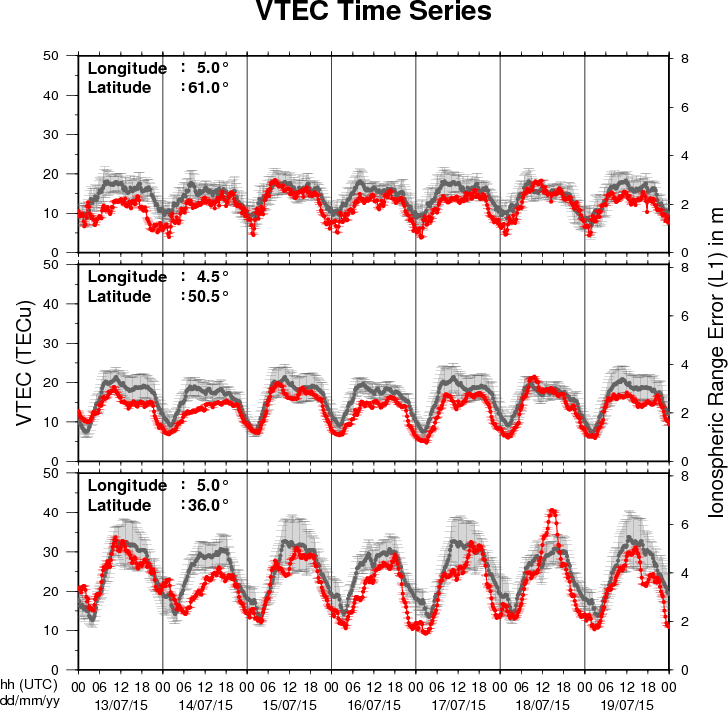

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
